CRM-F · CRS-F

Cocoa & Dry Fruits
Industrial Roasters

The industrial cocoa and dry fruits roasters are designed for heavy duty operation with manual or automatic control.

CRM-F industrial roasters are renowned for their top performance and reliability by cocoa beans roasteries and chocolate producers worldwide.

The automatic industrial roasters CRS-F models are known for their innovative design, superior performance and automated operation.

MORE INFORMATION

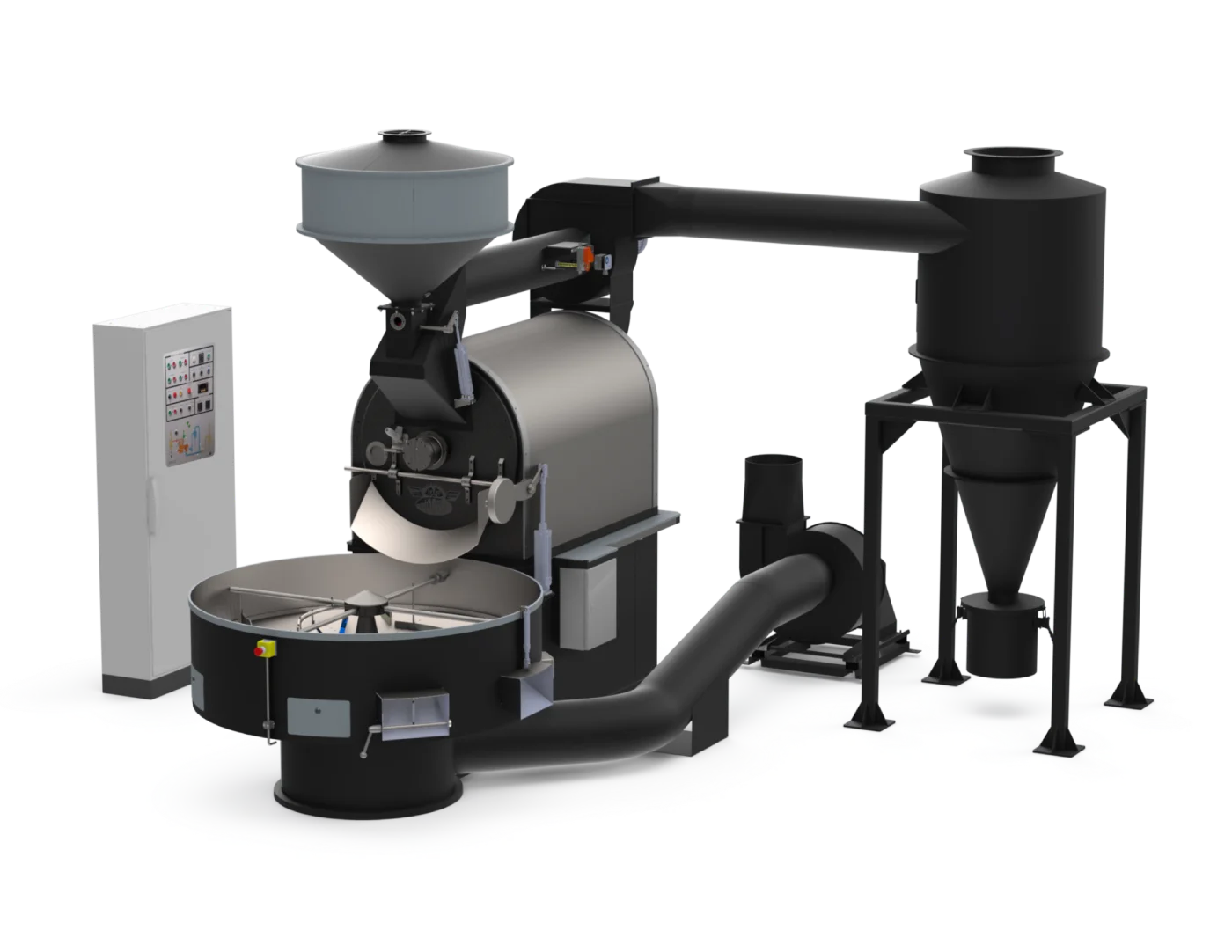

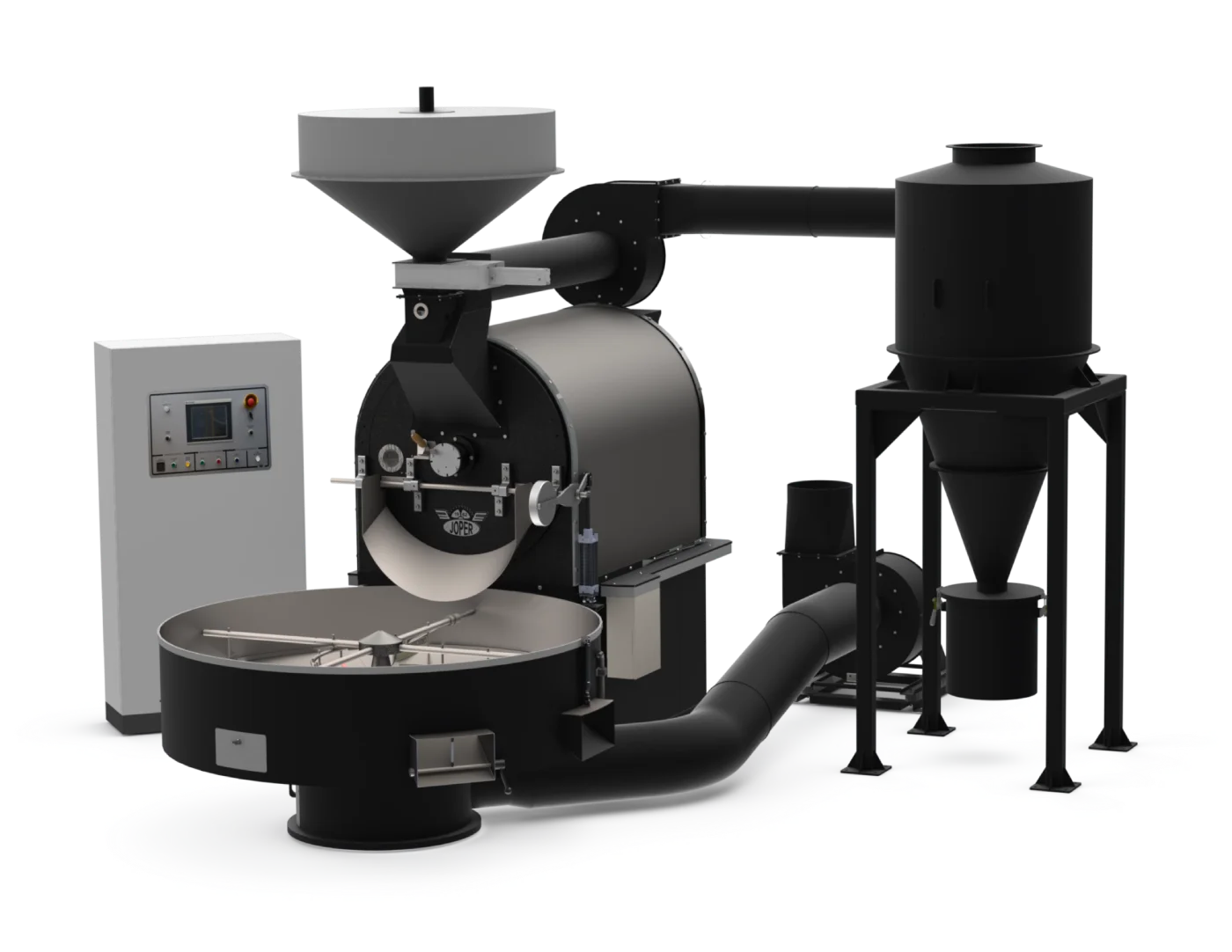

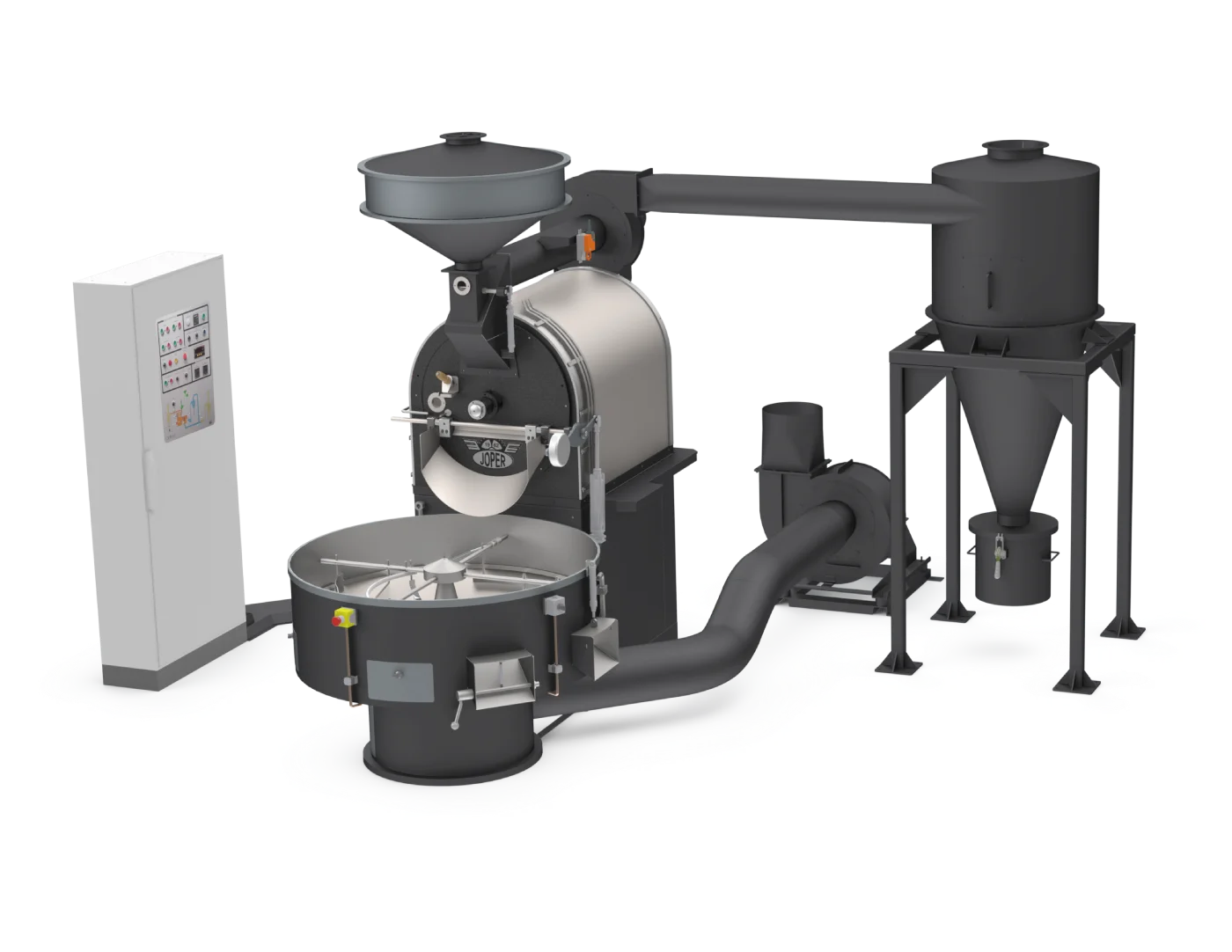

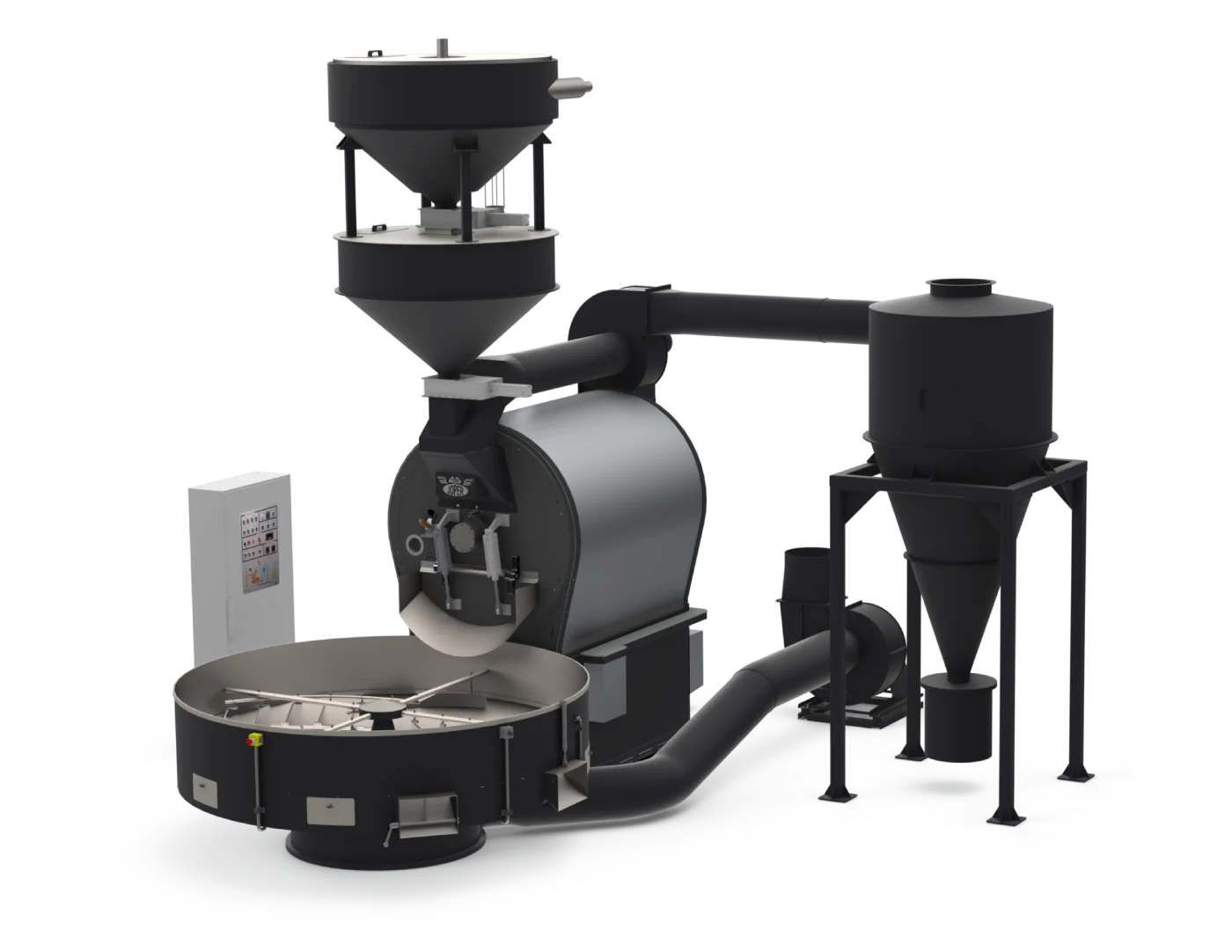

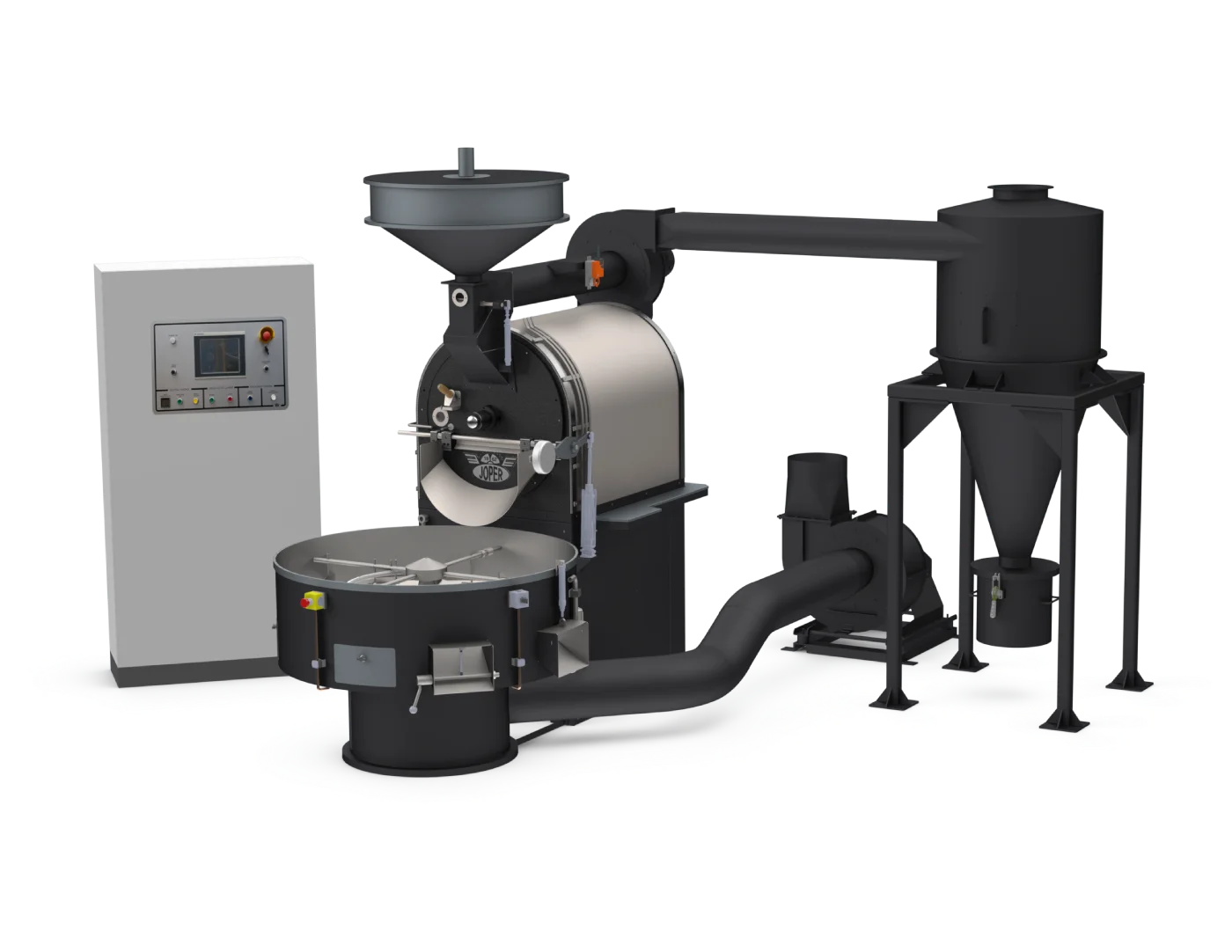

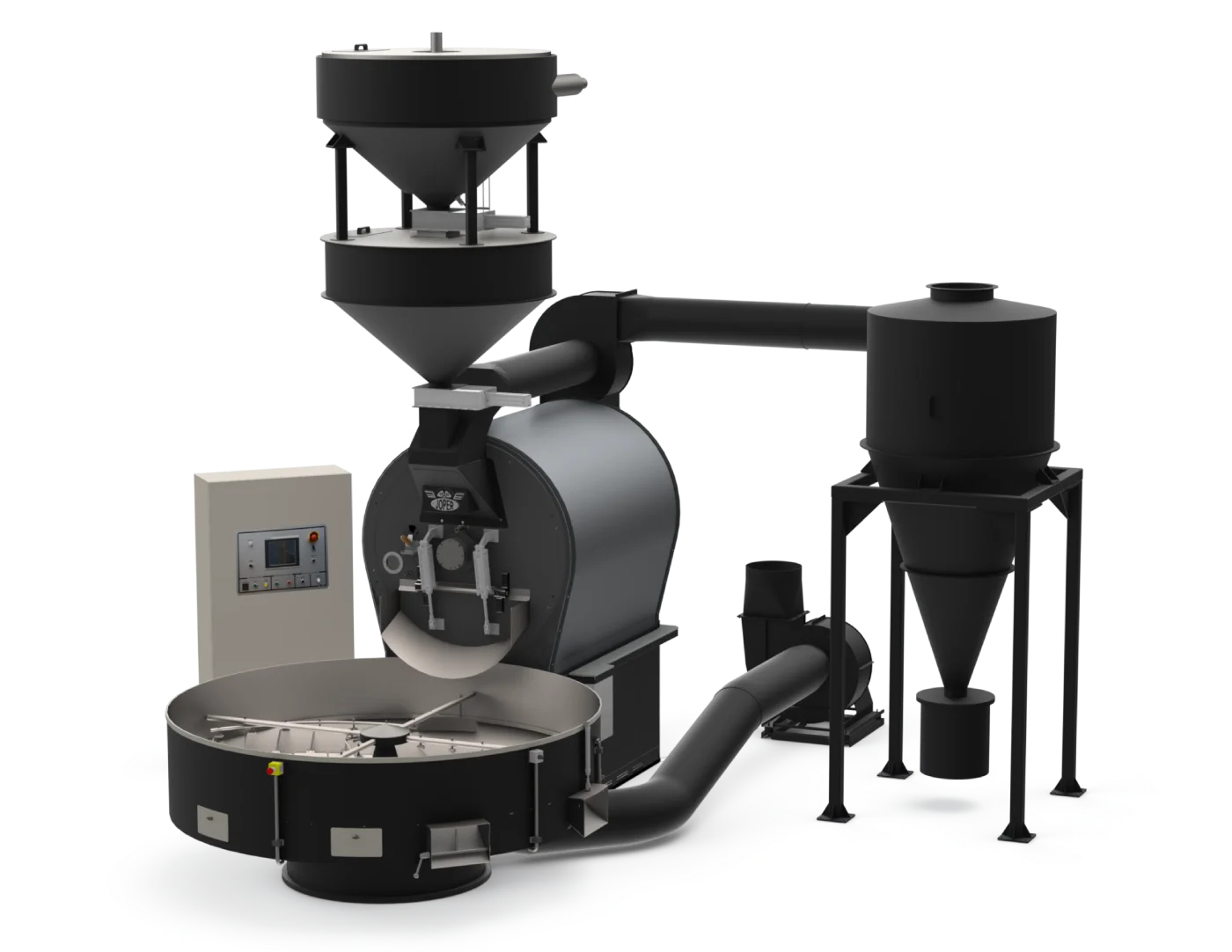

Example of a typical installation

Hover the icons in the image below to learn more.

Cast Iron

Cast iron is the material of choice of expert roasters manufacturers because it's extremely strong and durable.

Cast iron is resistant to destruction and weakening by oxidation and is perfect to build a strong, robust, and durable roaster.

Cast Iron

Cast iron is the ideal material to use in coffee roasters, with its relatively low melting point, good fluidity, castability, excellent machinability, resistance to deformation, and wear resistance.

Cast Iron

Cast iron has thermal inertia and exceptional radiation capacity; consequently, it retains the heat. As a result, the heat is more evenly distributed and lasts longer.

Cast Iron

Joper roasters are proudly handcrafted in Portugal by master craftmen, out of traditional high quality durable materials such as cast iron.

Cast Iron

TECHNICAL SPECIFICATIONS

Available are two distinct models (CRM-F and CRS-F), accommodating batch sizes ranging from 30 to 240 kg and an output capacity of 60 up to 480 kg of roasted cocoa per hour.

ROASTER MODELS	BATCH CAPACITY	ROASTING TIME	COOLING TIME	HEATING	POWER SUPPLY (*)	ROAST PROFILE SOFTWARE	WEIGHT
	15 - 30 kg (up to 60 kg/h)	30 - 45 min	3 - 4 min	Natural or Propane Gas	400 V / 50 Hz / 3 Phase 208 V / 60 Hz / 3 Phase	artisan / cropster (optional for CRM models) Brigus included in CRS models	1050 kg
	30 - 60 kg (up 120 kg/h)	30 - 45 min	3 - 4 min	Natural or Propane Gas	400 V / 50 Hz / 3 Phase 208 V / 60 Hz / 3 Phase	artisan / cropster (optional for CRM models) Brigus included in CRS models	2100 kg
	60 - 120 kg (up to 240 kg/h)	30 - 45 min	4 min	Natural or Propane Gas	400 V / 50 Hz / 3 Phase 208 V / 60 Hz / 3 Phase	artisan / cropster (optional for CRM models) Brigus included in CRS models	2500 kg
	120 - 240 kg (up to 480 kg/h)	30 - 45 min	6 min	Natural or Propane Gas	400 V / 50 Hz / 3 Phase 208 V / 60 Hz / 3 Phase	artisan / cropster (optional for CRM models) Brigus included in CRS models	3500 kg
