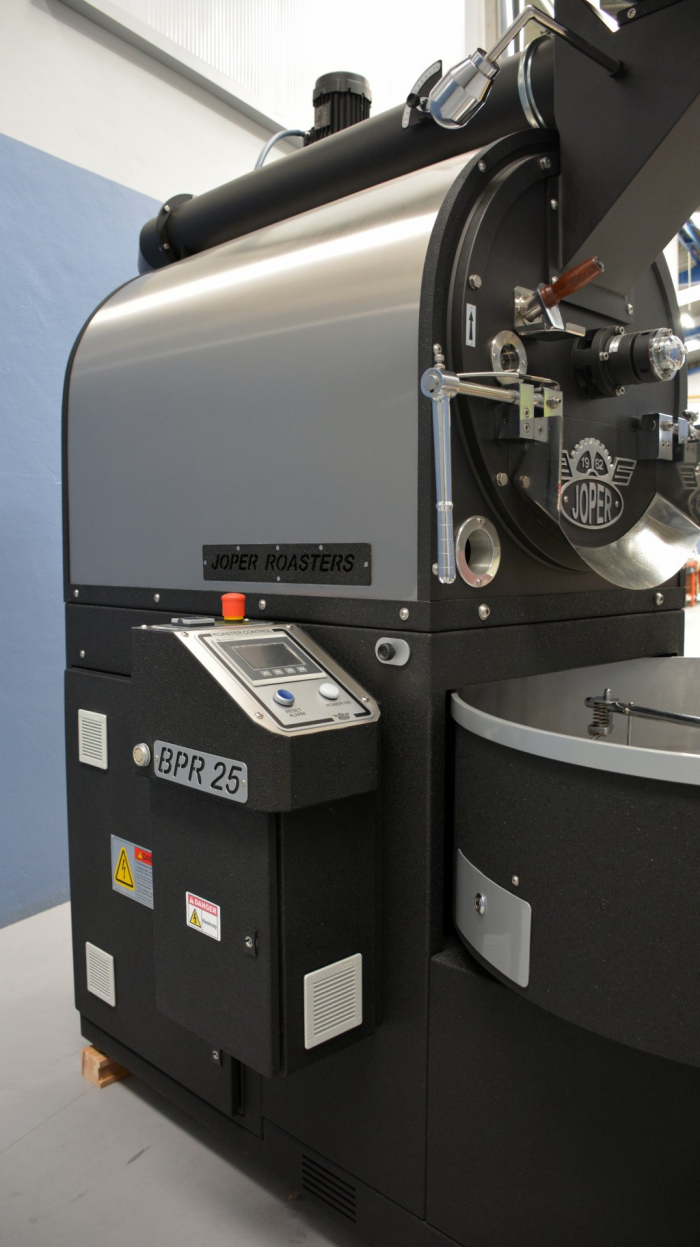

BPR-25

Designed and suitable for large roasteries, the semi-automatic BPR 25 has a capacity of 25 kg per batch of green coffee and it’s equipped with the BRIGUS Roasting Profile Software which allows roast masters to plan, repeat and save the desired roasting profile.

The built-in touch screen controls all functions and parameters of the roasting process, including the maintenance of the roaster.

The BPR 25 (Base Profile Roaster) allow roastmasters to roast their coffee automatically (or manually). The ability to operate and control all roasting parameters and create profiles generates a whole new world of possibilities for their coffee roasting operations.

BPR models are available in 1, 3, 5, 15 or 25 kg-batch capacity.

Categories: , , Tag:

SPECIFICATIONS:

Capacity

12.5 – 25 Kg
(100 Kg/h)

Power Supply

400V/50Hz/3Ph
230V/60Hz/3Ph
208V/60Hz/3Ph

Roasting Time

15 – 18 min.

Gas Type

Natural
or
Propane

Measurements
(L x W x H)

2640x1560x2550mm
103.9×61.4×100.3in

Cooling Time

4 min

Weight

850 kg

Optimal Roast profile

Brigus
Software included

NOTE: BPR models can be prepared for data loggers cropster and artisan. It has an extra cost.

  • JOPER Roasters are made with High-Quality CAST IRON components and hand craft individually for best Roast quality, control and consistency.
  • Roasting drum with double wall and special mixing paddles to ensure optimal movement and mixing for excellent roasting results.
  • Great roasting consistency, which allows high uniformity in the grain.
  • Roasting profile software BRIGUS.
  • The flow of hot air, that allows the beans to be roasted via convection is controlled and adjusted by manual damper or automated with BRIGUS.
  • Simultaneous roasting and cooling using separate suction of the cooling and roasting fans.
  • Adjustable flame modulation of gas burner 1-100% controlled automatically with our roasting profile software BRIGUS or manual control via touch panel.
  • Adjustable airflow controlled automatically with our roasting profile software BRIGUS or manual control via touch panel.
  • Pressure transducer to control the gas pressure in the PLC
  • Drum bearings in cast iron housings remotely mounted away from the hot roaster wall for extra-long life. All bearings and seals are SKF brand.
  • Separate cyclone with high Efficiency of separation and easy emptying of the bin for chaff.
  • 4 separate Premium Efficiency IE3 motors. All direct drive for quietness and low maintenance: Drum drive, cooling pan stir arms, roaster fan and cooler fan.
  • Cooler with large surface, one discharge door, agitator with separate drive and high-pressure fan to quickly cool the beans to the required temperature to lock in the aroma.
  • Easy operator control with sight glass to see how your beans are flowing inside the drum.
  • Sampler trier, temperature digital controller is provided to enable the roasting process to be monitored all time.
  • 2 thermocouples: Bean temperature and exhaust air temperature.
  • Atmospheric gas burner with low emissions (Low NOx) with complete gas train and all safety accessories.
  • Fuel Type: Propane gas (LPG) or natural gas (LNG).
  • Fully insulated with high temperature insulation blanket making the roaster very quiet and high energy efficient.
  • Electric control board to check and control the roasting process, with temperature digital displays, emergency button and all security components.
  • Gas and electric safety device with standards rules.
  • Hand crank for emptying the drum roaster in case of power outages.
  • Designed and developed to allow low maintenance.
  • Side and rear doors to simplify access to the interior of the roaster, during normal maintenance and cleaning of the various components.
  • Service Hours counter included with maintenance warning system.
  • Simplified installation and setting–up.
  • Operating side standard: Left.
  • JOPER roasters are built for long haul, one can run with them multiple shifts, 7 days a week.
  • The standard color of our roasters is Black RAL 9005 in the body of roaster and with silver details RAL 9006 in the cooler and hopper ring. Other colors can be selected in the RAL color catalogue.
  • Connect your computer directly to your roaster (optional).
