CRG 100-2 Drums (Series II)

Designed to last and perform its function efficiently, the CRG 100-2 drums series II roasters incorporate the same manufacturing concepts and quality standards with which JOPER manufactures industrial and shop roasters.

The CRG 100-2 series II sample roaster with 2 drums runs on gas and it is possible to roast a small batch of 100 g of green beans, also check and verify the quality of the roasted coffee and use it as a pattern for large scale roasting.

Stable, easy to operate, low maintenance, equipped with digital temperature control and a thermocouple in each drum to measure the temperature of the bean mass itself, the result is highest efficiency in sample roasting.

Without a doubt, CRG 100-2 series II has become the most demanded sample roaster model for small, medium as well as large companies, cooperatives, associations of producers, exporters/importers, which made Joper their new supplier for new projects, as well as for replacing old sample roasters.

CHARACTERISTICS:

  • Built with lids in metal.
  • Non-drilled roaster cylinder with special blades that ensure optimum coffee movement and excellent roast results.
  • Fuel type: Propane Gas (LPG) or Natural Gas (LNG).
  • Roaster process easily controlled by sample tube and digital temperature.
  • Bean temperature sensors.
  • Thermal isolation of high quality in ceramic nerve to reduce the energy loss.
  • 2 independent motors: (220V 50Hz 1 Phase) (110V 60Hz 1 Phase).
  • Easy operator control.
  • Easy maintenance with included toolkit.

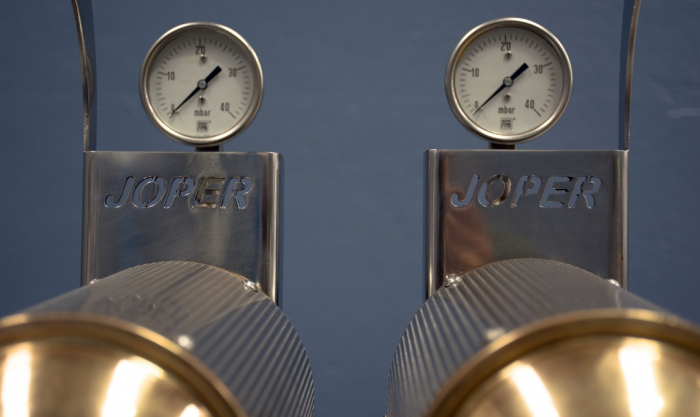

  • Each drum is equipped with gas pressure gauge to control the roasting process with more precision.
  • Separate chaff collecting cyclone included with 0.37 kW cooling fan.
  • 1 Year warranty.
  • Can be prepared for data loggers cropster or artisan. It has an extra cost.
  • Optional: Rear shield golden painted and drum cover plates. Standard: Silver

SPECIFICATIONS:

Series II
Model
Capacity
per batch g/oz
Roasting
time
Power supply Fuel
type
CRG 100-2 100/3.5

200/7
 8-15 min  110-220 V/
50-60 Hz / 1 Ph

Natural
or
Propane Gas

CRG 100-4 100/3.5

400/14
CRG 100-6 100/3.5

600/21



Download the Sample Roaster CRG 100-2 (Series II) Brochure
