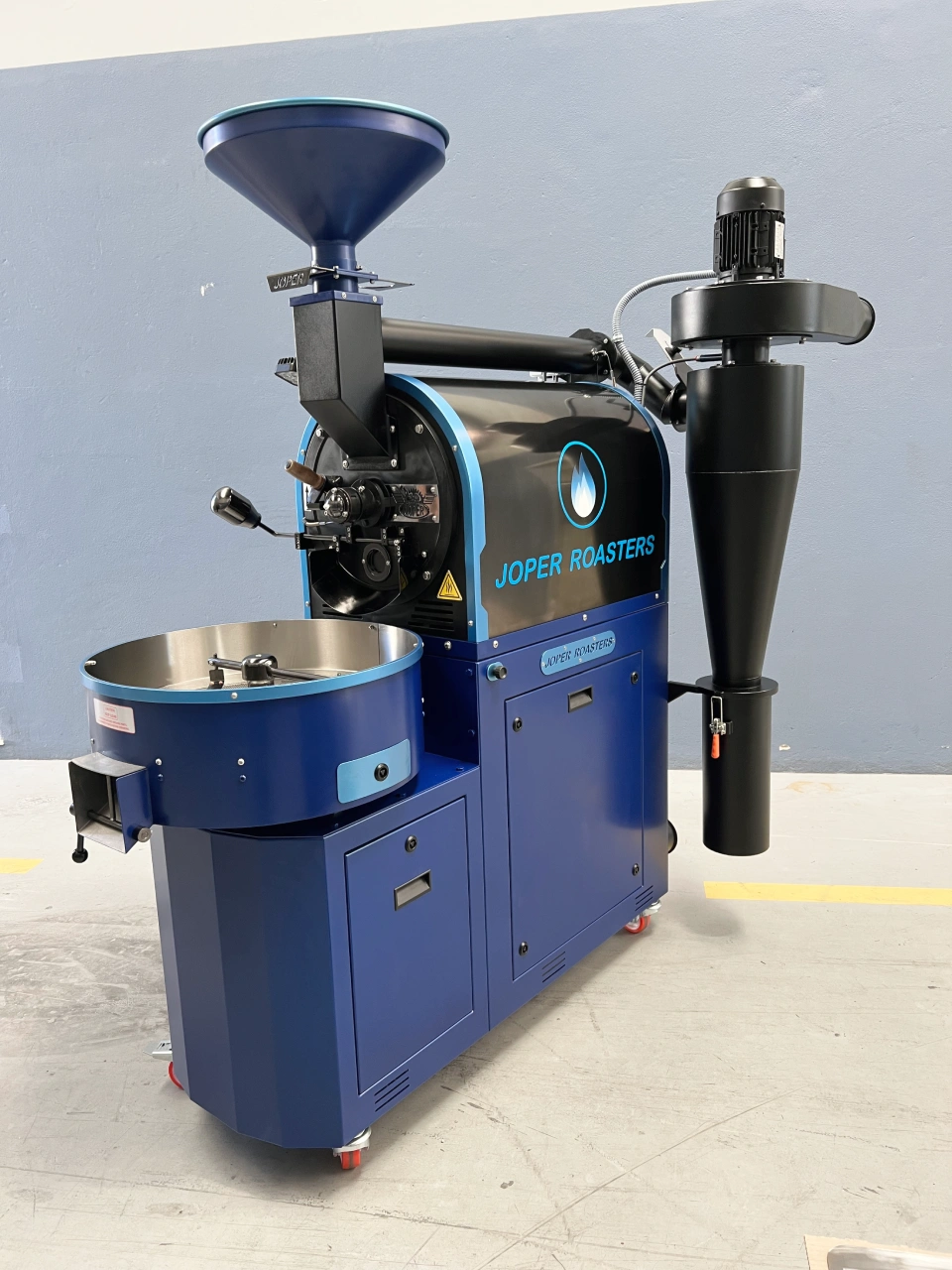

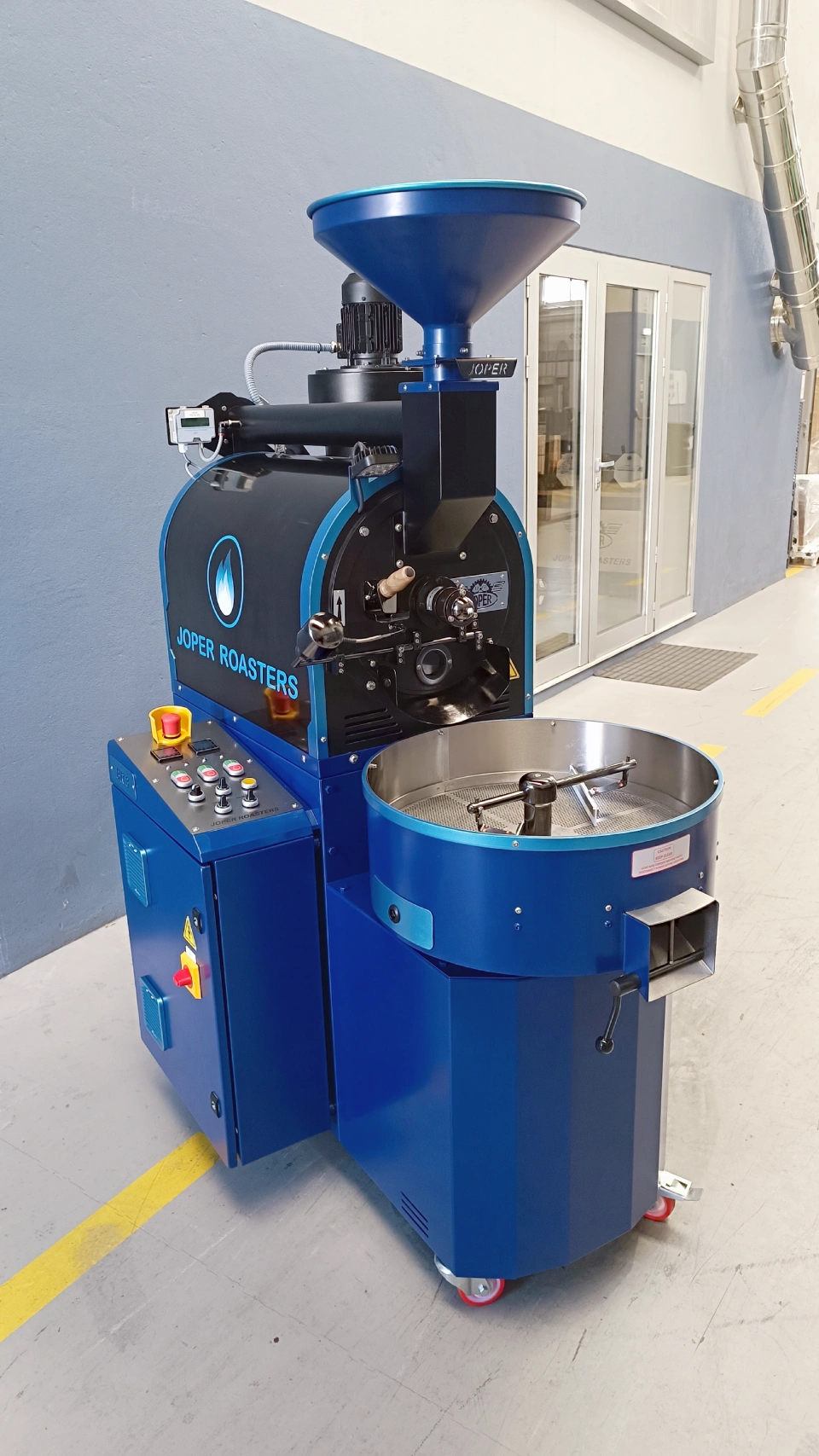

BR 3 STANDARD

Small roaster,
BIG performance!

With excellence as our goal, we implemented a more sustainable, cost-effective, and eco-friendly burner in all our BR gas shop roasters.

With precise and responsive control, the BR 3 STANDARD equipped with the new modulating premix burner will help roast masters achieve consistent quality in their roasting batches.

A COST-EFFECTIVE PREMIX BURNER

Roasteries and coffee shops are always looking for ways to reduce costs in their roasting operations, mainly those linked to gas and electricity. The implementation of a premix burner is the answer they were looking for.

Since the gas and air mixing parameters are created upstream of the combustion head of the burner, the resulting flame is consistent, shorter and stronger in length, thus providing a reduction in costs and maintenance.

Main Features

  • Cast iron drum with double wall

  • Premix burner with low NOx emission levels

  • Up to 20% reduced consumption (electric and gas)

  • Adjustable cooler position

  • Minimal and easy operation

  • Reduced mechanical maintenance

  • Maximum control over roasting parameters

  • Fast reactions and precise adjustments

  • Excellent hot air temperature distribution

  • High roast consistency batch after batch

TECHNICAL SPECIFICATIONS

Batch size

1.5 – 3 kg (12 kg/h)

Roasting time

10 – 20 min

Heating

Natural or Propane Gas

Cooling time

3 min

Power supply

208-400V / 50-60 Hz / 3 Ph

Weight

300 kg

Models BR STANDARD are also available in the following batch capacities: 1, 5, 15 and 25 kg/batch.

Take control of your roasting

MANUAL WITH DATA LOGGER PROFILE

The BR 3 STANDARD model is equipped with variation to control the drum speed and drum fan speed with potentiometers in the control panel, a vacuum pressure (in Pa), a converter, 2 thermocouples with double readout, a USB connection and it is prepared for data loggers profile software Cropster or Artisan.

This type of software is a datalogger that records the exhaust temperature ‘air flow’ (ET), the bean temperature (BT), the Rate-of-Rise (RoR) and the roasting curves. However, to be able to repeat these records you will have to control it manually.

AUTOMATIC CONTROL WITH ROAST PROFILE SOFTWARE

By integrating an external Roasting Profile Software, the BR 3 can operate automatically. (*)

The following models with the roasting profile software will expand the capabilities of the roaster by enabling an accurate and automated reproduction of all saved-defined recipes and parameters stored in the software database.

(*) Available capacities: 3, 5, 15 and 25 kg/batch

BR 3 ADVANCED

Automatic control with
external roasting software

Simplify your production roasting with gas, drum speed, and airflow controls accessible directly from Cropster and Artisan roasting profile software.
Use the replay features to automatically replicate your favorite profiles.

BR 3 PREMIUM

Automatic control with
Brigus Roasting Profile Software

BRIGUS control the roaster and the pre-selected roasting profile by automatically take control of the gas burner, the drum and drum fan speed (air flow) and automatically adjusts these parameters to accurately track the roasting curves and improve the consistency and quality of the roast.

OPTIONAL EQUIPMENT

Compliment the performance of your roaster and enhance your productivity levels with a destoner, a green bean loader or even with an afterburner.
